Heavy Duty Boltless Widespan Shelving

This shelving system has been developed following the latest standards of the FEM, in terms of design and testing, which ensures this system to be the best choice for small and large businesses. Advantages include:

  • Easy to install.
  • Perfect finishing with the application of epoxy powder paint with a minimum thickness of
  • 50 to 70 micras.
  • The design of this shelving is adaptable to any size container.
  • The original boltless shelving , used by thousands of businesses and homes across the UK
  • Robust, profiled beams and angled steel posts cope easily with the toughest environments.
  • Simple, rapid assembly with no nuts, bolts or clips, just tap together with a rubber mallet

Specification

  • All shelves feature C section front and back beams, L section side beams, centre supports and 15mm chipboard decks.
  • Each shelf carries up to 400kg UDL
  • Available in 4 lengths – 1525mm, 1830mm, 2134mm & 2440mm
  • Bays are supplied with 4 levels as standard, extra shelves can also be ordered
  • Available in 3 heights – 1980mm, 2440mm, 3050mm

Please note. When ordering, please state your shelving specification. If the required size is not available, the nearest alternative will be supplied.

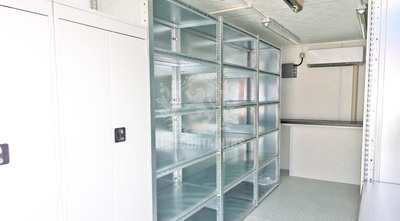

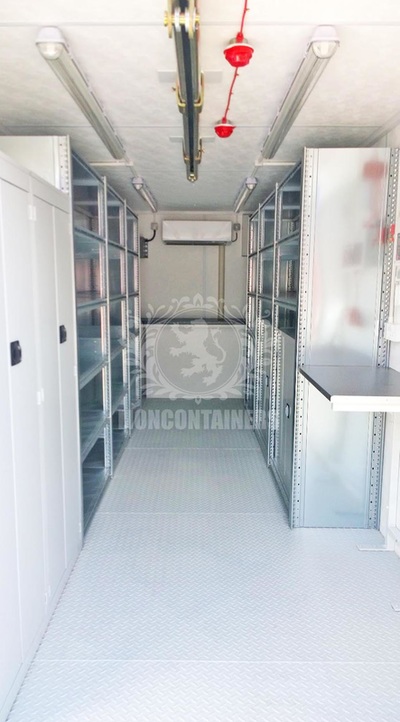

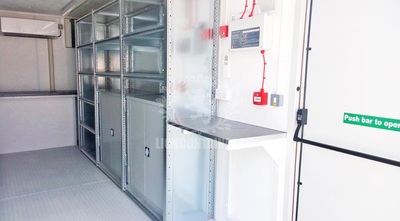

Container Shelving Example | Electrical Control and Monitoring Containers

​We built an electrical control room and a store for a company who manufactures energy cables for land application across the UK and in other parts of the world. Heavy duty steel shelving with additional lips for shipping were fitted throughout the store. Read more…

Electrical Control and Monitoring Containers >>

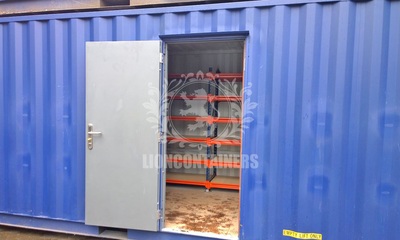

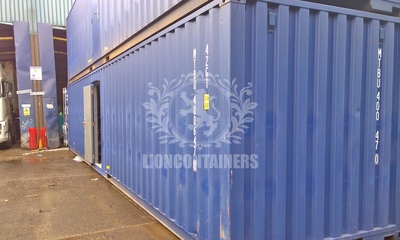

Container Shelving Example | Archive Storage

We supplied a 40ft container to a fuels company for document storage. Heavy duty shelving was fitted to all sides, except the double cargo doors. Read more…

40ft Archive Storage Container  >>​
